Air Compressors for Construction

Air that keeps
a build site moving

Breaking, jetting, sprayed concrete, hand tools — construction runs on portable air that arrives with the crew and never becomes the reason a trade stands still.

Quick answer: Most sites run towable diesel compressors at the work front and a small stationary plant in the compound — sized on total tool demand and hose length, not on the biggest single tool.

Photo: Artem Labunsky / Unsplash Scroll

Air follows the crew. The front never waits.

[ 01 · At a glance ]

Construction air at a glance

The four constraints that shape every site setup.

EnvironmentDust, weather exposure, daily relocation

Air demandBreakers, jetting, shotcrete, tool air

Typical setupTowable diesel at the front + compound plant

Decide bySimultaneous tool demand and hose runs

[ 02 · Site demands ]

What a build site asks of an air system

Two very different jobs, one supply decision.

A.The work front

Breakers, grit blasting and hydro-jetting pull high, intermittent flows exactly where the crew is that week. Towable diesel units move with the job, start under load day after day, and keep rated output through dust and heat.

B.The site compound

Workshops, paint and calibration bays need clean, steady air from a small stationary room. It runs all day at part load, so energy-efficient control matters more than peak FAD.

[ 03 · Equipment ]

Recommended SIND equipment

The two product families construction firms pull from most.

SIND MobilPower PM-Series petrol mobile screw air compressor

Mobile air

Mobile & Skid-Mounted Compressors

Towable diesel and skid units that follow the front — sized on simultaneous tool demand at hose-end pressure.

View the range →

Site power

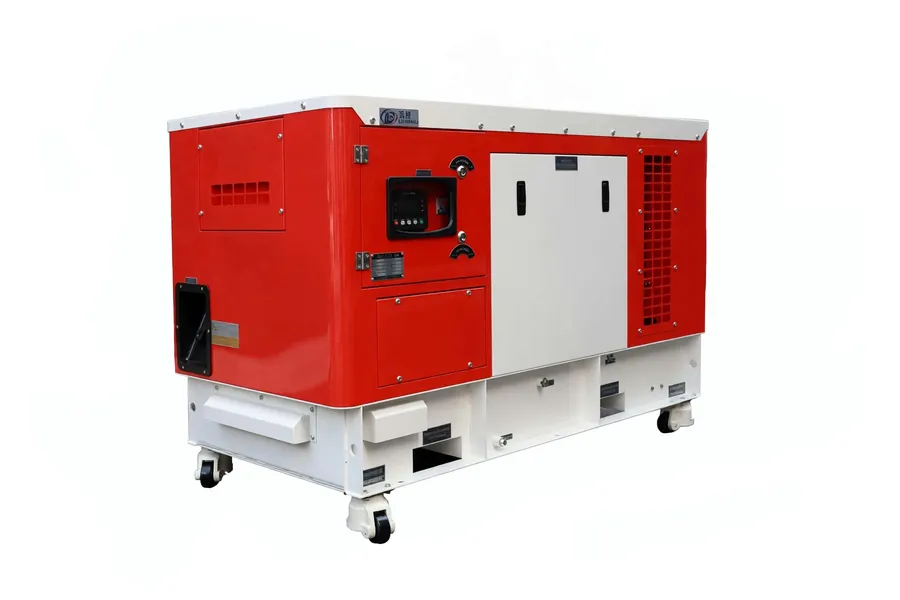

Portable Generators 20–2200 kVA

Open, silent and container gensets powering towers, cabins, pumps and lighting plants on unpowered sites.

View the range →

[ 04 · Before you specify ]

Six checks that keep a site quote accurate

Simultaneous tool demand, not the single largest tool
Hose length and bore — pressure loss kills breakers first
Duty cycle: demolition peaks versus all-day tool air
Ambient dust load and intake filtration
Fuel logistics for diesel units across shifts
Compound power available for the stationary room

[ 05 · Quick estimator ]

What do your tools draw at once?

Size the compressor on tools running together at the front — not on the biggest single tool.

Tool 1 — average air demand (m³/min) Tool 2 — average air demand (m³/min) Tool 3 — average air demand (m³/min) Simultaneity (share of demand running together) High — most tools work together (90%) Typical site mix (70%) Staggered crews (50%)

Indicative sizing only. Hose length, elevation and duty cycle shift the real number — send the tool list below and our engineers will verify the selection.

Request a verified selection

Suggested unit capacity 4.7 m³/min total simultaneous demand at the front This is the duty point for the mobile compressor class — verified against your full tool list before you commit.

[ 06 · FAQ ]

FAQ

What size air compressor does a construction site need?

Size on simultaneous tool demand at hose-end pressure, plus margin for hose losses — not on the single largest tool. A typical breaking and jetting front draws 10–25 m³/min together; a compound workshop needs far less.

Why diesel portable units instead of electric on site?

The work front rarely has reliable power, and the compressor must move as the crew moves. Towable diesel units deliver rated flow anywhere on site and refuel in minutes; electric units suit the powered compound.

How does hose length affect breaker performance?

Every metre of hose adds pressure loss, and breakers stop striking long before the gauge reads zero. Keep runs short, use adequate bore, and size the unit for pressure at the tool — not at the compressor panel.
