StationPack SN-H is a horizontal PM VFD screw air compressor station. Choose from 2.2-30 kW, 8/10/12.5/14/16 bar and 220/380 V to match airflow, pressure and floor space.
Description

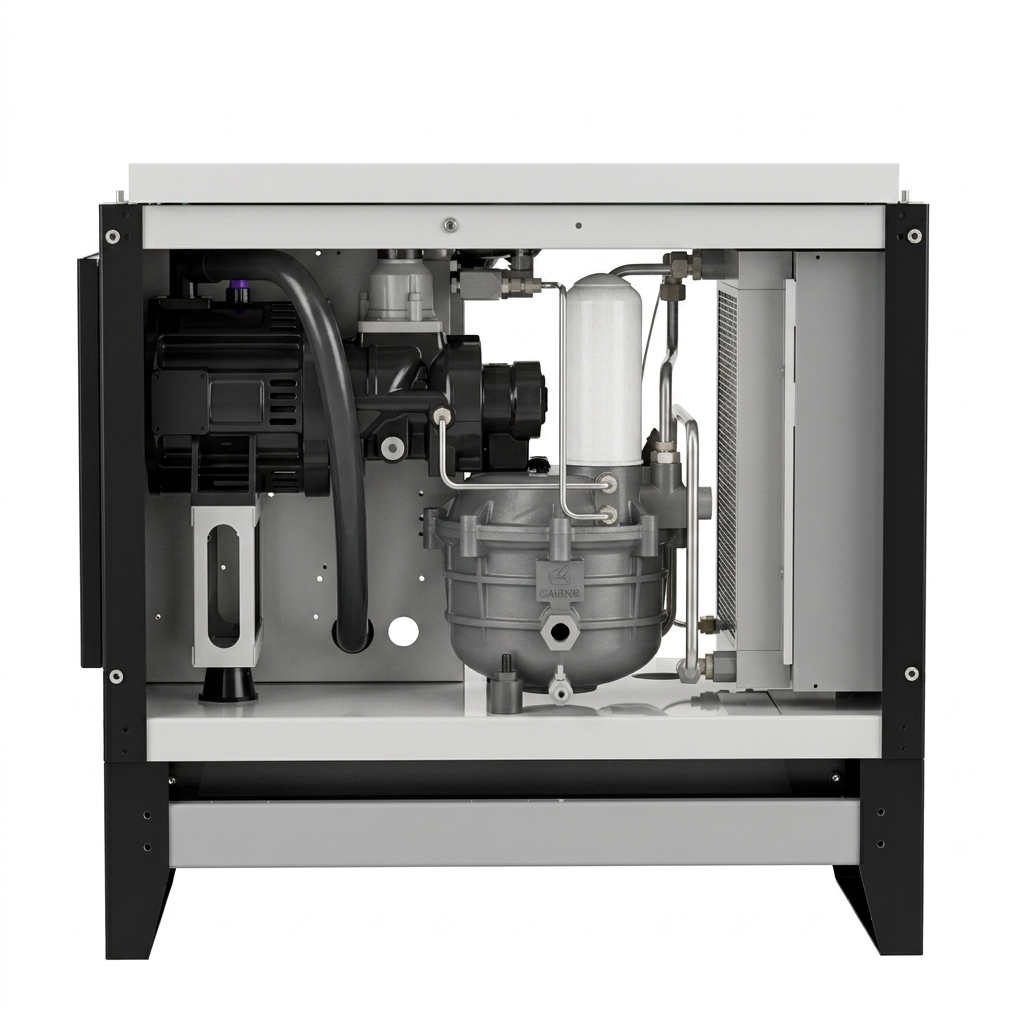

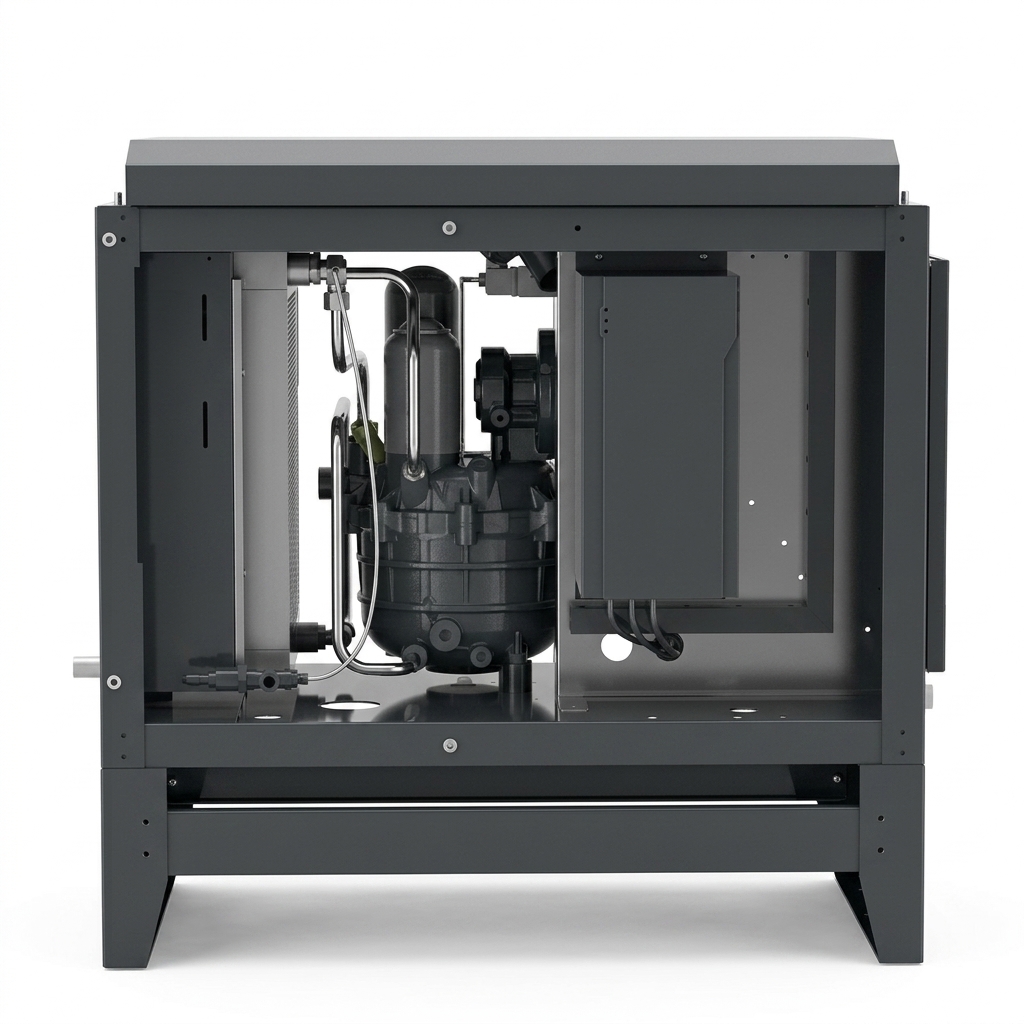

StationPack SN-H horizontal integrated screw air compressor station
StationPack SN-H is a horizontal screw air compressor station with permanent-magnet variable-frequency drive. It is built for plants that want the compressor in a compact horizontal package, then choose the model against airflow, pressure, power supply and the space on the floor.
SN-H at a glance
- Layout
- Horizontal enclosure
- Drive
- Permanent-magnet VFD
- Power range
- 2.2-30 kW
- Electrical supply
- 220 / 380 V
What range does StationPack SN-H cover?
SN-H covers 2.2 kW to 30 kW at 220/380 V. Pressure options are 8/10/12.5/14/16 bar . Air delivery spans 0.30-3.5 m3/min depending on the model and pressure you select.
Power and pressure
2.2-30 kW
- Electrical supply
- 220 / 380 V
- Pressure options
- 8/10/12.5/14/16 bar
- Layout
- Horizontal PM VFD station
Air delivery
0.30-3.5 m3/min
- How to read it
- Range across the SN-H models
- What changes it
- Model and working pressure
- Next step
- Match FAD to the duty point
Use the brochure for the full model table, then confirm the selected row, FAD, dimensions and configuration before quotation.
How do you select a horizontal screw air compressor station?
Start with the air you need at the working pressure. Then check the electrical supply and the floor space for a horizontal package and confirm the exact SN-H model before you ask for a quote.
Duty point
Set the required airflow and pressure
Write down required FAD and working pressure first. Compare the matching 8/10/12.5/14/16 bar row instead of assuming one airflow figure covers every variant.
Site fit
Check power supply and floor space
SN-H uses 220/380 V and a horizontal enclosure. Confirm dimensions, clearance, ventilation and service access against the current datasheet before you place it.
Quote check
Lock the exact SN-H model
Before quotation, confirm the model designation, pressure and FAD, electrical setup, dimensions and what the package includes. This page is a product guide, not a finished system design.
What should you confirm before asking for a quote?
These six points keep a series overview from being treated as a project specification. Wider system design and air treatment stay a separate discussion when those services are needed.
- the exact SN-H model designation
- required operating pressure
- free air delivery at that pressure
- electrical configuration
- enclosure size and available floor space
- the current datasheet and what the selected package includes
Frequently asked questions
What is an all-in-one screw air compressor?
An integrated system that combines the compressor, air receiver tank, refrigerated air dryer, and line filters into a single compact unit.
What power range does StationPack SN-H cover?
SN-H covers 2.2-30 kW. Pressure, air delivery and dimensions depend on the individual model.
Which pressure options does StationPack SN-H offer?
SN-H is available at 8/10/12.5/14/16 bar . Confirm the current datasheet before you use any figure in a project specification.
Is StationPack SN-H a complete compressed-air-system design?
No. SN-H is a horizontal integrated screw air compressor station range. Final model choice and any wider system design still need the site conditions.
