StationPack SN-H2 is a horizontal PM VFD screw air compressor station at 2.2-30 kW, 8/10/12.5/14/16 bar and 220/380 V.
Description

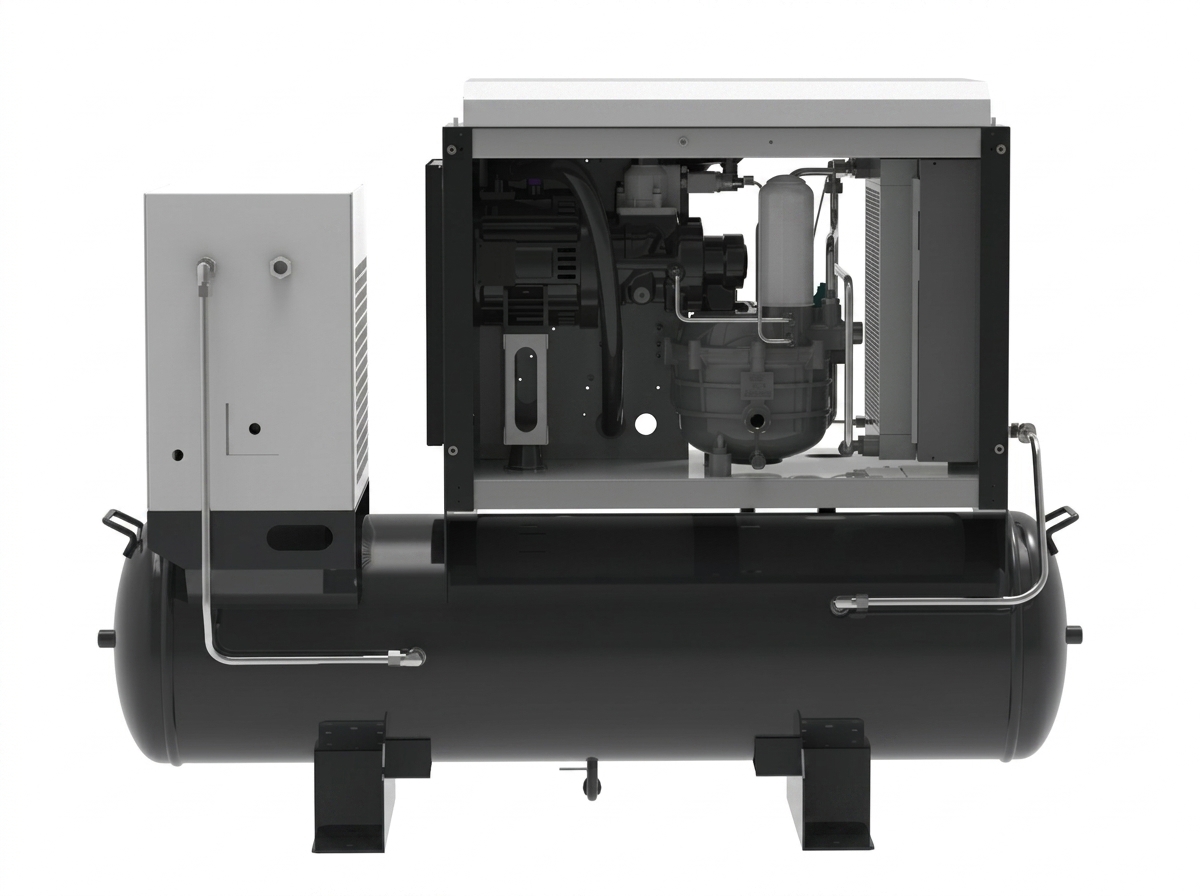

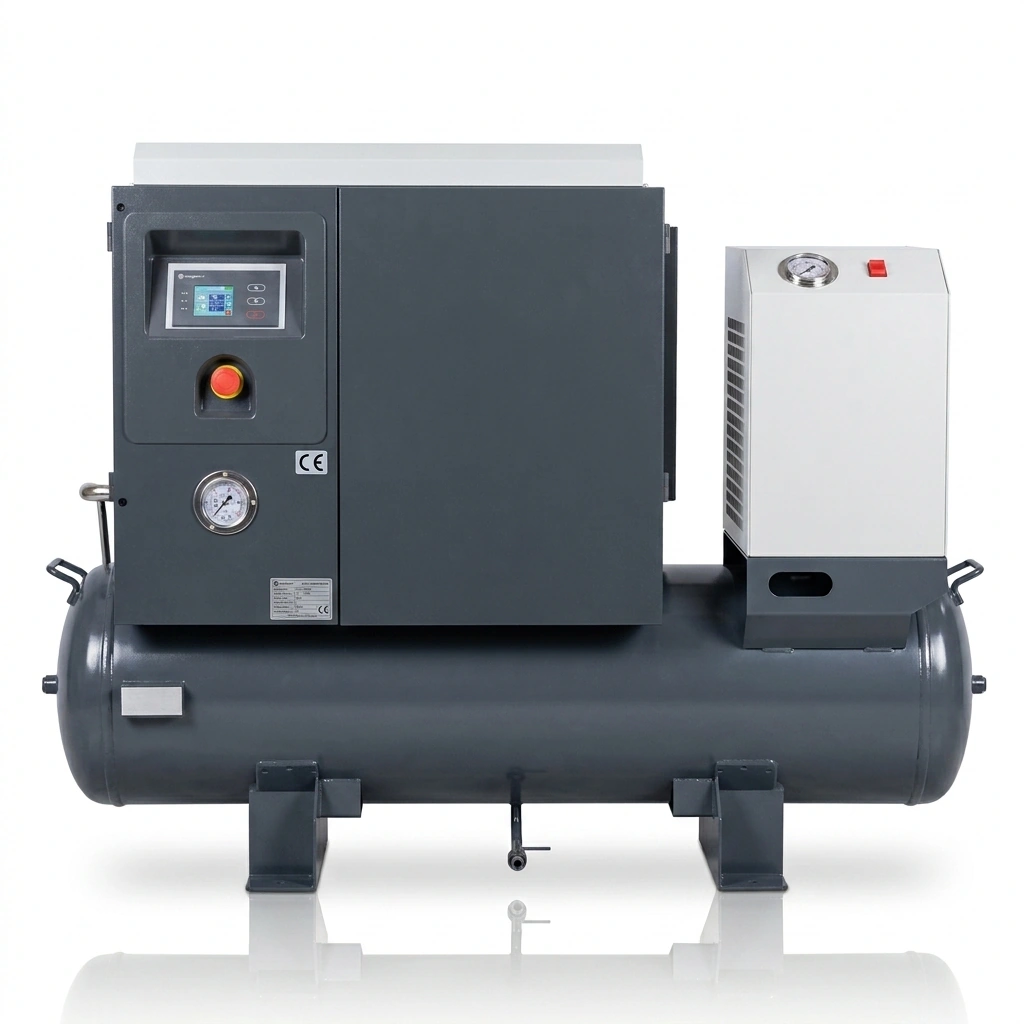

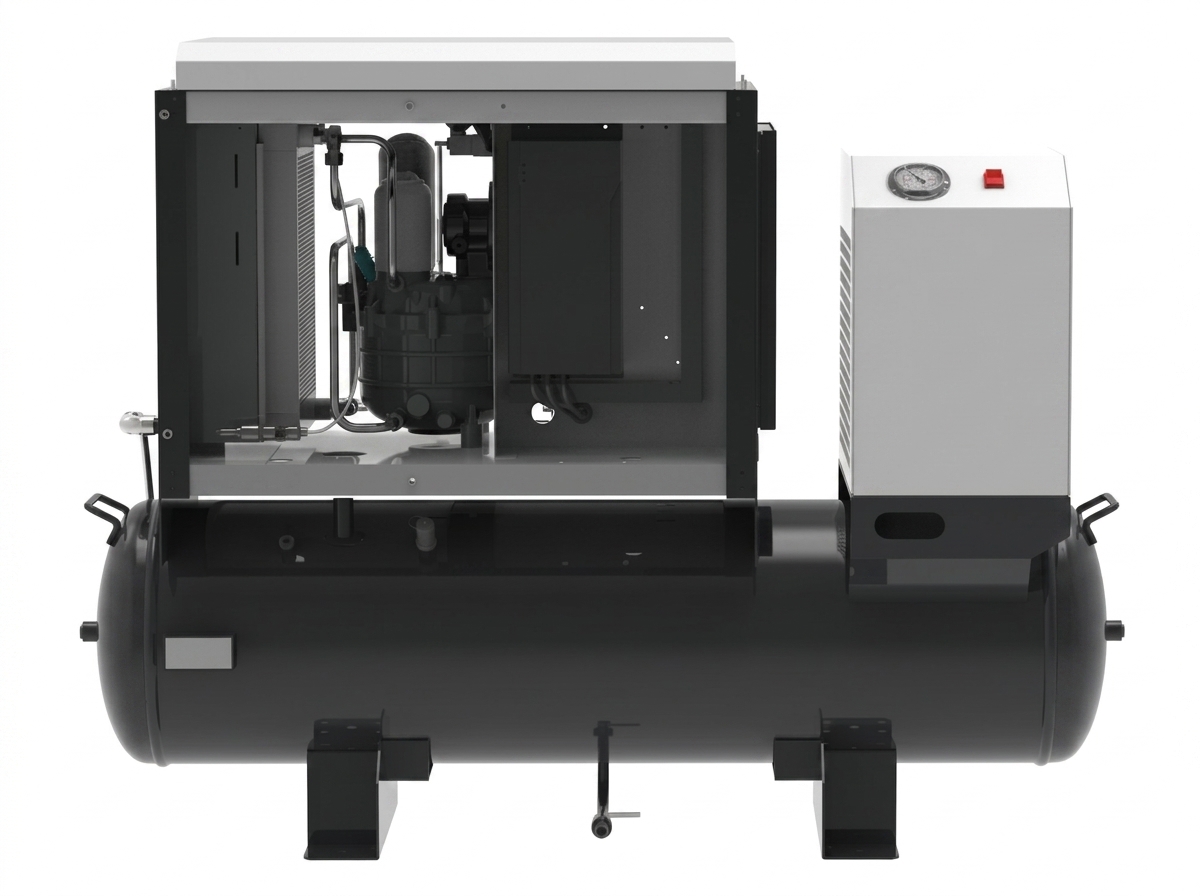

StationPack SN-H2 horizontal integrated screw air compressor station
StationPack SN-H2 is a horizontal screw air compressor station with permanent-magnet VFD. It uses its own SN-H2 table and a longer horizontal package than SN-H1, so it is selected only when that layout fits.
StationPack SN-H2 at a glance
- Layout
- Horizontal enclosure
- Drive
- Permanent-magnet VFD
- Power range
- 2.2-30kW
- Electrical supply
- 220 / 380 V
What range does StationPack SN-H2 cover?
SN-H2 covers 2.2-30 kW at 220/380 V, with 8/10/12.5/14/16 bar rows in the SN-H2 table. The SN-H2 footprint is not the SN-H1 footprint.
Power and pressure
2.2-30 kW
- Pressure options
- 8/10/12.5/14/16 bar
- Electrical supply
- 220 / 380 V
- Layout
- Horizontal PM VFD station
How to choose
By SN-H2 row
- Start with
- Required FAD and pressure
- Then check
- The longer SN-H2 package
- Before a quote
- Confirm the SN-H2 model
Use the brochure for the full model table, then confirm the selected row before quotation.
How do you select a horizontal SN-H2 station?
Start with required FAD and pressure, then check whether the SN-H2 horizontal package is the layout you actually have room for.
Duty point
Set airflow and pressure
Use the SN-H2 pressure row, not another StationPack table.
Site fit
Check the SN-H2 envelope
Confirm length, clearance and 220/380V against the current datasheet.
Quote check
Lock the exact SN-H2 model
Confirm the model designation, FAD and package contents.
What should you confirm before asking for a quote?
These checks keep a series overview from being treated as a project specification. Wider system design stays a separate discussion when it is needed.
- the exact SN-H2 model designation
- required operating pressure
- free air delivery at that pressure
- electrical configuration
- SN-H2 floor space
- the current datasheet and package contents
Frequently asked questions
What is an all-in-one screw air compressor?
An integrated system that combines the compressor, air receiver tank, refrigerated air dryer, and line filters into a single compact unit.
What power range does StationPack SN-H2 cover?
2.2-30kW in the SN-H2 table.
Which pressure options does SN-H2 offer?
8/10/12.5/14/16 bar
Is SN-H2 the same as SN-H1?
No. Both are horizontal PM VFD stations, but each has its own table and package.
