High-capacity Cummins-powered gensets in ISO container enclosures, 1250-2200 kVA prime, 7 models, paralleling supported.
Description
Container type diesel generators
High-capacity Cummins-powered gensets in standard ISO container enclosures from 1250 to 2200 kVA, built for industrial plants, infrastructure sites and utility-scale standby and prime power.
At a glance
- Type
- Container type diesel generator, ISO enclosure
- Power range
- 1250-2200 kVA prime, larger on request
- Engine
- Cummins KTA50 / QSK50 / QSK60
- Enclosure
- 12192 × 2435 × 2286 mm container
Model range
7 models, all in standard 40 ft container dimensions:
| Model | Prime Power kVA (kWe) | Standby Power kVA (kWe) | Cummins Engine | Container Dimensions (L×W×H mm) | Weight (kg) |
|---|---|---|---|---|---|
| D1000C | 1250 (1000) | 1375 (1120) | KTAA50-G3 | 12192×2435×2286 | 13500 |
| D1100C | 1375 (1100) | 1513 (1210) | KT50-GS8 | 12192×2435×2286 | 13500 |
| D1200C | 1500 (1200) | 1650 (1320) | KTAA50-GS8 | 12192×2435×2286 | 13700 |
| D1320C | 1650 (1320) | 1815 (1452) | QSK50-G7 | 12192×2435×2286 | 14500 |
| D1500C | 1875 (1500) | 2063 (1650) | QSK60-G3 | 12192×2435×2286 | 17600 |
| D1600C | 2000 (1600) | 2200 (1760) | QSK60-G4 | 12192×2435×2286 | 18000 |
| D1760C | 2200 (1760) | 2420 (1935) | QSK60-G13 | 12192×2435×2286 | 18000 |
Multiple sets can be paralleled for higher capacity or redundancy; tell us your target plant capacity.
How to select
Three checks before you request a quote.
Plant capacity
Size the plant
Total site load plus growth plans; decide single set or paralleled groups.
Logistics
Check transport
Standard ISO dimensions move by road, sea and rail; confirm crane access at the site.
Fuel plan
Plan runtime

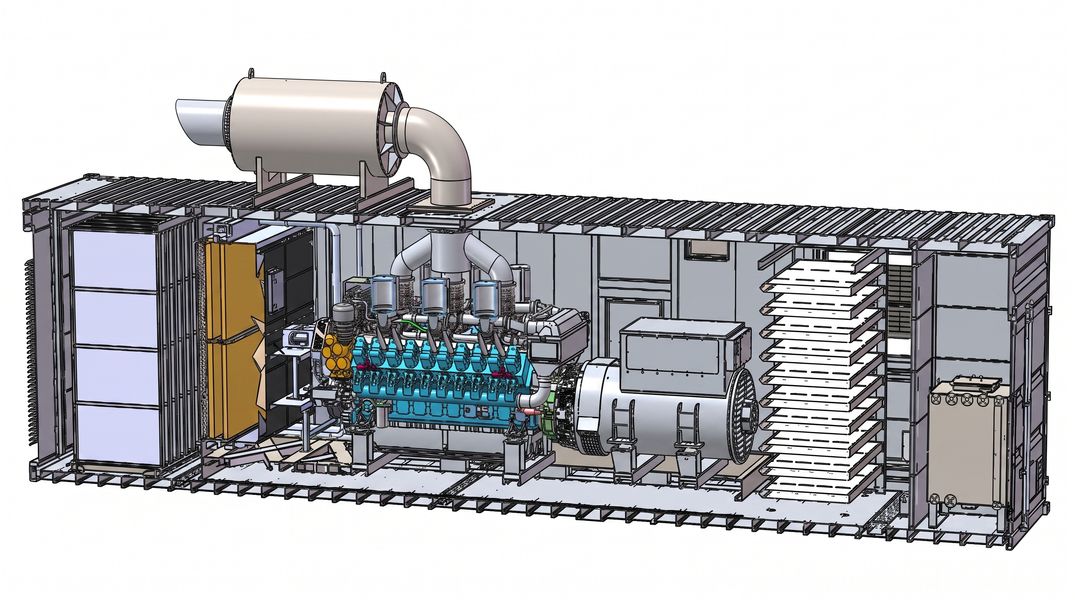

Large integral tanks support long unattended running; confirm refuelling logistics.
What to confirm before a quote
- the exact model
- prime or standby duty
- required voltage and frequency
- single set or paralleling scheme
- site crane access and foundation plan
Frequently asked questions
Why a container instead of a canopy?
Above roughly 1000 kVA the ISO container gives better transport protection, much larger onboard fuel capacity and simpler site handling.
Can several sets run together?
Yes, sets parallel with synchronized load sharing for capacity or redundancy.
What is the largest model?
The largest model delivers 2200 kVA prime / 2420 kVA standby with a QSK60-G13 engine.
